产品特性

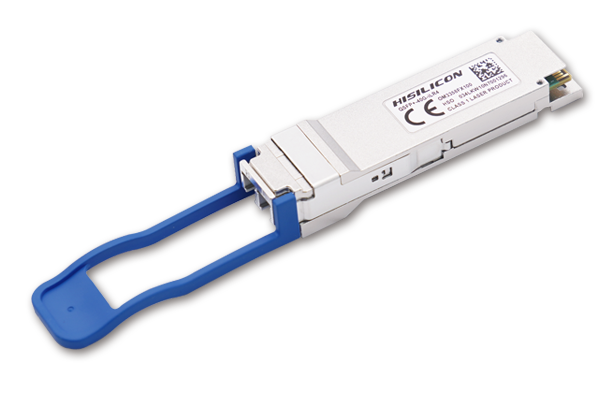

QSFP+ MSA compliant
4 CWDM lanes MUX/DEMUX design
Maximum power consumption 3.5 W
41.25 Gbps aggregate bit rate
Operating case temperature: 0 to 70°C
I2C digital management interface
IEEE 802.3-2018 compliant
4 x 10G electrical interface (XLPPI)
LC duplex connector
Up to 2 km transmission on single mode fiber without FEC
Single 3.3 V power supply
RoHS 2 compliant
应用场景
40GE Ethernet
Data Center Interconnect
Enterprise Networking
40GE Ethernet
Data Center Interconnect
Enterprise Networking
产品规格
|
P/N
|
|
OM3358FX100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP+
|
iLR4
|
LC
|
SMF
|
2
|
3.5
|
0 to 70
|
–6 to +3.5
|
–10.5
|
|
P/N
|
OM3358FX100
|
|
Form Factor
|
QSFP+
|
|
Transceiver
|
iLR4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
2
|
|
Power Consumption/W
|
3.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–6 to +3.5
|
|
Rx Input/dBm
|
–10.5
|
