产品特性
Reach beyond 2000 km over SMF for 100G transmission
Supports 100GE/OTU4 signaling
Compliant with OTL4.4 signaling
CFP2 MSA Hardware Specification Rev. 1.0
CFP MSA Management Interface Specification Version 2.6 (R06a)
Line loopback, host terminal/facility loopback
Supports PM-QPSK (100G) modulation
Compliant with CEI-28G-MR specifications
Hot-pluggable
OIF-CFP2-DCO-01.0
Line & Client PRBS generator and checker
Power consumption 21 W (max.)
100G Ethernet
100G OTN
100G Ethernet
100G OTN
产品规格
|

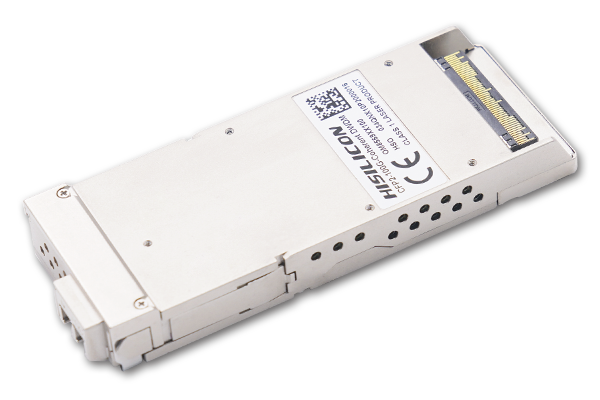

P/N
|
|
OM8569XX100
|
|
Data Rate/Gbps
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
100
|
CFP2
|
DWDM
|
LC
|
SMF
|
2000
|
21
|
0 to 75
|
–4 (Typ.)
|
–18 to 0
|
|
P/N
|
OM8569XX100
|
|
Data Rate/Gbps
|
100
|
|
Form Factor
|
CFP2
|
|
Transceiver
|
DWDM
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
2000
|
|
Power Consumption/W
|
21
|
|
Temperture/℃
|
0 to 75
|
|
Tx Output/dBm
|
–4 (Typ.)
|
|
Rx Input/dBm
|
–18 to 0
|
