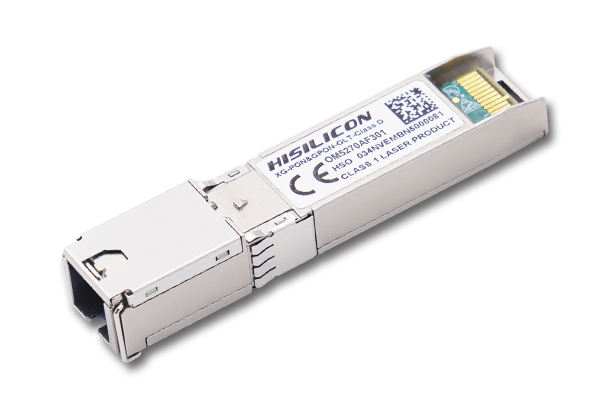

产品特性
Single-fiber bi-directional transmission
2 x 11 SFP+ electrical interface
Typical power consumption 2.5 W
Operating case temperature: 0°C to 70°C
ODN Class D
ITU-T G.987.2 compliant
SFP+ package
Hot-pluggable
SC receptacle optical connector
3.3 V power supply
RoHS 2 compliant
ITU-T G.984.2 compliant
应用场景
Gigabits Access Networks
FTTH
FTTC
FTTB
XG-PON and GPON Combo Access Networks
Gigabits Access Networks
FTTH
FTTC
FTTB
XG-PON and GPON Combo Access Networks
产品规格
|
P/N
|
|
OM5270AF301
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP+
|
XG-PON&GPON Combo OLT Class D
|
SC
|
SMF
|
20
|
2.5
|
0 to 70
|
8 to 12@9.953G;
6 to 10@2.488G |
–13 to –33.5@2.488G;
–15 to –35@1.244G |
|
P/N
|
OM5270AF301
|
|
Form Factor
|
SFP+
|
|
Transceiver
|
XG-PON&GPON Combo OLT Class D
|
|
Interface
|
SC
|
|
Media
|
SMF
|
|
Reach/km
|
20
|
|
Power Consumption/W
|
2.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
8 to 12@9.953G;
6 to 10@2.488G |
|
Rx Input/dBm
|
–13 to –33.5@2.488G;
–15 to –35@1.244G |
