产品特性
OSFP MSA rev5.1 compliant
OIF CMIS 5.2 Management interface compliant
IEEE 802.3ck 400GAUI-4 standard compliant
Digital diagnostic functions
Hot Pluggable QSFP112 form factor
850 Gbps aggregate bit rate
Maximum power dissipation 15.5 W @800G OSFP END
Operating case temperature range 0°C to 70°C
RoHS 2 compliant
QSFP112 MSA rev2.11 compliant
IEEE 802.3ck 800GAUI-8 standard compliant
OIF-CEI-112G-VSR-PAM4 standard compliant
Hot Pluggable OSFP (flat-top) form factor
8 channels full-duplex transceiver module
Maximum link length of 40 m MMF with FEC
Maximum power dissipation 8 W @400G QSFP112 END
Single 3.3 V power supply
应用场景
Ethernet
Data Center Network
Ethernet
Data Center Network

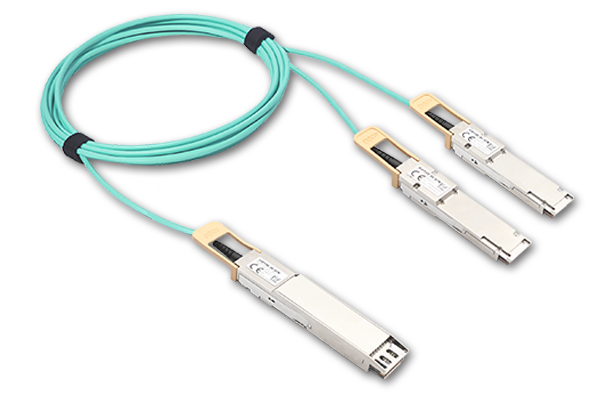

产品规格
|
P/N
|
|
OM3881SX10x
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperature/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
OSFP/QSFP112
|
Ycable
|
MPO
|
MMF
|
0.005~0.04
|
15.5W@800G
8W@400G |
0 to 70
|
/
|
/
|
|
P/N
|
OM3881SX10x
|
|
Form Factor
|
OSFP/QSFP112
|
|
Transceiver
|
Ycable
|
|
Interface
|
MPO
|
|
Media
|
MMF
|
|
Reach/km
|
0.005~0.04
|
|
Power Consumption/W
|
15.5W@800G
8W@400G |
|
Temperature/℃
|
0 to 70
|
|
Tx Output/dBm
|
/
|
|
Rx Input/dBm
|
/
|
