Features
Single-fiber bi-directional transmission
2 x 11 SFP+ electrical interface, support 20 PIN or 22 PIN system
Typical power consumption 1.8 W
Operating case temperature: 0 to 70°C
ODN Class N2
ITU-T G. 987.2 compliant
SFP+ package
Hot pluggable
SC receptacle optical connector
3.3 V power supply
RoHS 2 compliant
ITU-T G. 9807.1 compliant
Applications
Gigabits Access Networks
FTTH
FTTC
FTTB
XGS-PON Access Networks
Gigabits Access Networks
FTTH
FTTC
FTTB
XGS-PON Access Networks
Product Specification
|
P/N
|
|

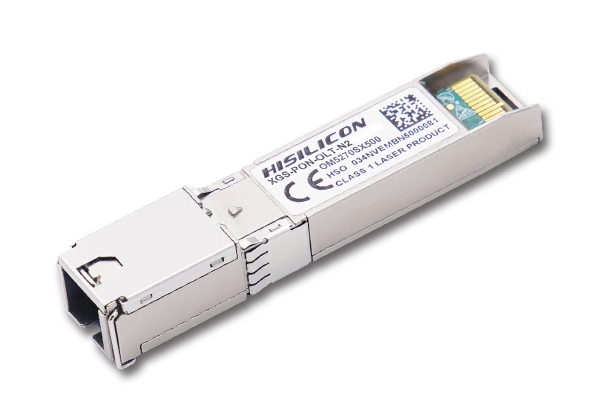

OM5270SX500
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP+
|
XGS-PON OLT N2
|
SC
|
SMF
|
20
|
1.8
|
0 to 70
|
4 to 7@9.953G
|
–7 to –28@9.953G; –9 to –29.5@2.488G
|
|
P/N
|
OM5270SX500
|
|
Form Factor
|
SFP+
|
|
Transceiver
|
XGS-PON OLT N2
|
|
Interface
|
SC
|
|
Media
|
SMF
|
|
Reach/km
|
20
|
|
Power Consumption/W
|
1.8
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
4 to 7@9.953G
|
|
Rx Input/dBm
|
–7 to –28@9.953G; –9 to –29.5@2.488G
|
