Features
QSFP-DD MSA compliant
Digital diagnostic monitoring support
8 LAN-WDM lanes MUX/DEMUX design
Maximum power consumption 14.5 W
Supports 425 Gbps bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Compliant to IEEE 802.3cn 400GBASE-LR8
Hot pluggable 76 pin electrical interface
53.125 Gbps PAM4 channel electrical serial interface (400GAUI-8)
LC duplex connector
Up to 10 km transmission on single mode fiber
Single 3.3 V power supply
Applications
400GBASE-LR8 Ethernet
Telecom Networking
Data Center Interconnect
400GBASE-LR8 Ethernet
Telecom Networking
Data Center Interconnect

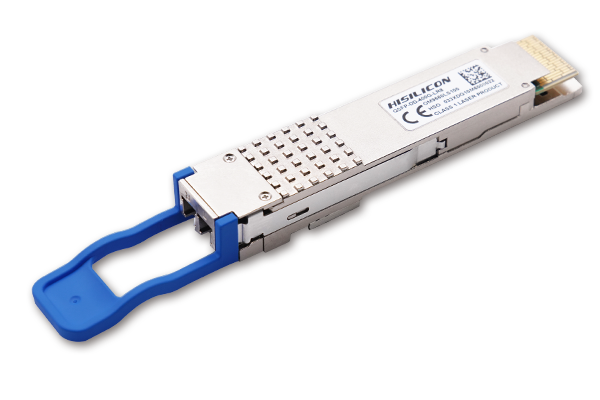

Product Specification
|
P/N
|
|
OM9660LS100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP-DD
|
LR8
|
LC
|
SMF
|
10
|
14.5
|
0 to 70
|
0.2 to 5.7
|
Max (–6.6, SECQ – 8)
|
Y
|
|
P/N
|
OM9660LS100
|
|
Form Factor
|
QSFP-DD
|
|
Transceiver
|
LR8
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
10
|
|
Power Consumption/W
|
14.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
0.2 to 5.7
|
|
Rx Input/dBm
|
Max (–6.6, SECQ – 8)
|
|
FEC
|
Y
|
