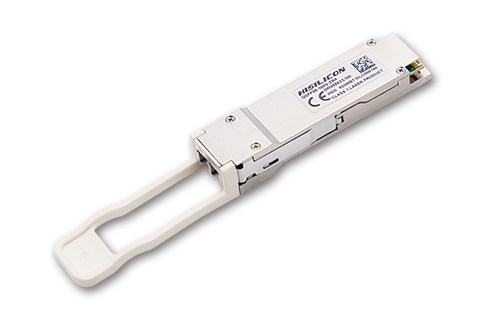

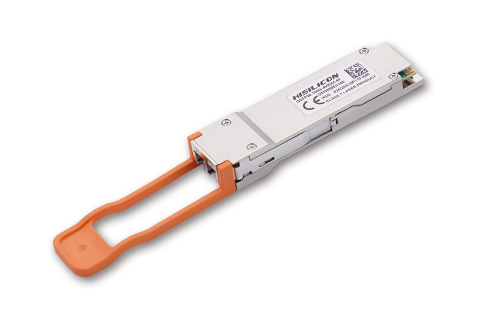

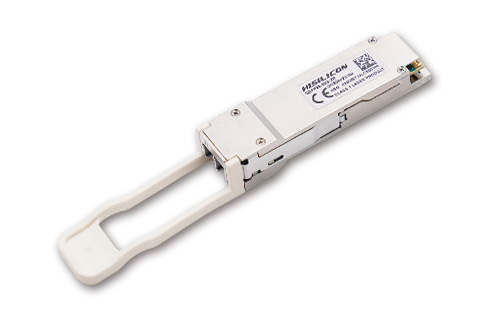

Features
QSFP28 MSA compliant
1 x 50G PAM4 transmitter
Maximum power consumption 4.5 W
Supports 53.125 Gbps aggregate bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Hot pluggable 38 pin electrical interface
26.5625 Gbps channel electrical serial interface (50GAUI-2)
LC duplex connector
Up to 40 km transmission on single mode fiber
Single 3.3 V power supply
Applications
50GBASE-ER Ethernet
Telecom Networking
50GBASE-ER Ethernet
Telecom Networking
Product Specification
|
P/N
|
|
OM9380ES100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
ER
|
LC
|
SMF
|
40
|
4.5
|
0 to 70
|
3.4 to 7.4
|
Max (–15.1, SECQ – 16.5)
|
Y
|
|
P/N
|
OM9380ES100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
ER
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
40
|
|
Power Consumption/W
|
4.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
3.4 to 7.4
|
|
Rx Input/dBm
|
Max (–15.1, SECQ – 16.5)
|
|
FEC
|
Y
|
