Features
Supports 50 GHz channel spacing
Compliant with CFP MSA Management Interface Specification 2.6
LC optical receptacle
Hot-pluggable
SerDes PRBS generator/checker for per lane testing of host interface
Support PM-DQPSK (100G), PM-QPSK (100G), PM-16QAM (200G) modulation
Compliant with CFP MSA CFP Hardware Specification 1.4
Operating case temperature: 0°C to 75°C
Support OTU4, OTUC2, compliant with OTL4.10/OTL4.4/OTLC2 signaling
Power consumption 32 W (max.)
Framed PRBS generator/checker on the host and network side interfaces
Reach beyond 1300 km for 200G and 3000 km for 100G over SMF without inline chromatic dispersion compensation
Applications
200G Ethernet
200G OTN
200G Ethernet
200G OTN

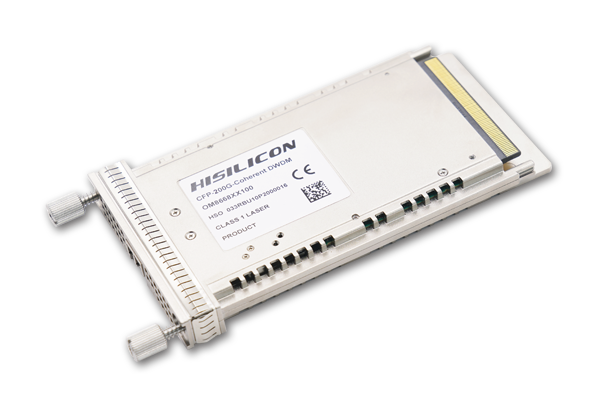

Product Specification
|
P/N
|
|
OM8668XX100
|
|
Data Rate/Gbps
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
200
100 |
CFP
|
DWDM
|
LC
|
SMF
|
1300
3000 |
32
|
0 to 75
|
–10 to +4
|
–21 to 0
|
|
P/N
|
OM8668XX100
|
|
Data Rate/Gbps
|
200
100 |
|
Form Factor
|
CFP
|
|
Transceiver
|
DWDM
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
1300
3000 |
|
Power Consumption/W
|
32
|
|
Temperture/℃
|
0 to 75
|
|
Tx Output/dBm
|
–10 to +4
|
|
Rx Input/dBm
|
–21 to 0
|
