Features
Support PM-DQPSK (100G) and PM-QPSK (100G) modulation
Compliant with CFP MSA CFP hardware specification 1.4
SerDes PRBS generator/checker for per lane testing of host interface
LC optical receptacle
Hot-pluggable
Framed PRBS generator/checker on the host and network side interfaces
Supports 50 GHz channel spacing
Compliant with CFP MSA management interface specification 2.6
Operating case temperature: 0°C to 75°C
Supports OTU4, compliant with OTL4.10/OTL4.4 interface
Power consumption 28 W
Reach beyond 3000 km for 100G over SMF without inline chromatic dispersion compensation
Applications
100G Ethernet
100G OTN
100G Ethernet
100G OTN
Product Specification
|

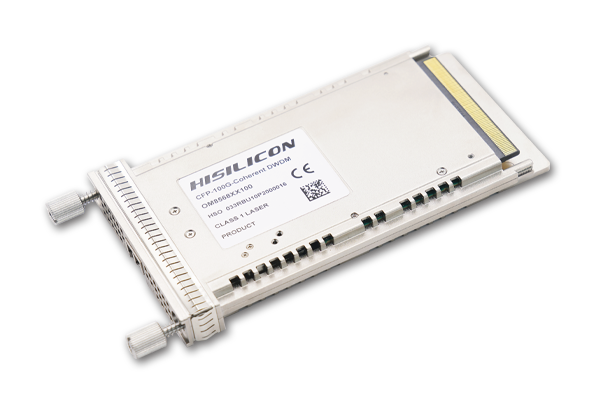

P/N
|
|
OM8568XX100
|
|
Data Rate/Gbps
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
100
|
CFP
|
DWDM
|
LC
|
SMF
|
3000
|
28
|
0 to 75
|
–2.5 (Typ.)
|
–21 to 0
|
|
P/N
|
OM8568XX100
|
|
Data Rate/Gbps
|
100
|
|
Form Factor
|
CFP
|
|
Transceiver
|
DWDM
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
3000
|
|
Power Consumption/W
|
28
|
|
Temperture/℃
|
0 to 75
|
|
Tx Output/dBm
|
–2.5 (Typ.)
|
|
Rx Input/dBm
|
–21 to 0
|
