Features
Reach beyond 1300/3000 km over SMF for 200G/100G transmission
Supports OTU4/OTUC2/2 x 100GE/100GE signaling
Compliant with OTL4.4/OTLC2/CAUI-4 signaling
CFP2 MSA Hardware Specification Rev. 1.0
CFP MSA Management Interface Specification Version 2.6 (R06a)
Line loopback, host terminal/facility loopback
Support PM-16QAM (200G) and PM-DQPSK/PM-QPSK (100G) modulation
Supports 200G/100G flex-rate
Compliant with CEI-28G-MR specifications
Hot-pluggable
OIF-CFP2-DCO-01.0
Line & Client PRBS generator and checker
Power consumption 26 W (200G)/21 W (100G)
Applications
200G Ethernet
200G OTN
200G Ethernet
200G OTN

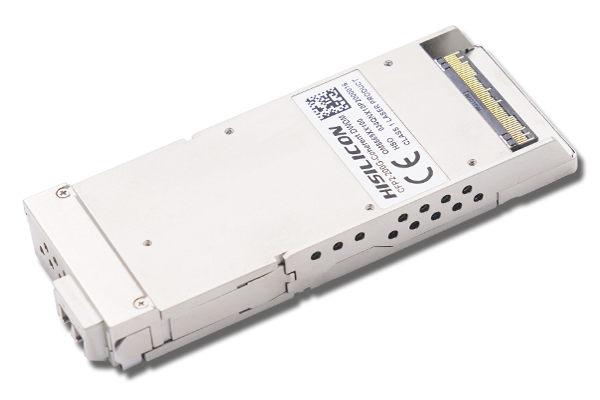

Product Specification
|
P/N
|
|
OM8669XX100
|
|
Data Rate/Gbps
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
200
100 |
CFP2
|
DWDM
|
LC
|
SMF
|
1300
3000 |
26
|
0 to 75
|
–10 to +1
|
–18 to 0
|
|
P/N
|
OM8669XX100
|
|
Data Rate/Gbps
|
200
100 |
|
Form Factor
|
CFP2
|
|
Transceiver
|
DWDM
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
1300
3000 |
|
Power Consumption/W
|
26
|
|
Temperture/℃
|
0 to 75
|
|
Tx Output/dBm
|
–10 to +1
|
|
Rx Input/dBm
|
–18 to 0
|
