Features
SFP28 MSA compliant
48 channels (191.3–196.0 THz/191.4–196.1 THz)
Maximum power consumption 2.5 W
24.33024 Gbps, 25.78125 Gbps (with FEC); 9.8304 Gbps, 10.1376 Gbps, 10.3125 Gbps
Up to 10 km transmission on single mode fiber
Single 3.3 V power supply
25G electrical interface (OIF CEI-28G-VSR)
100 GHz channel spacing
LC duplex connector
Wavelength auto-tuning
Operating case temperature: –20°C to +85°C
RoHS 2 compliant
Applications
CPRI/eCPRI
10G/25G Ethernet Switches and Routers
CPRI/eCPRI
10G/25G Ethernet Switches and Routers

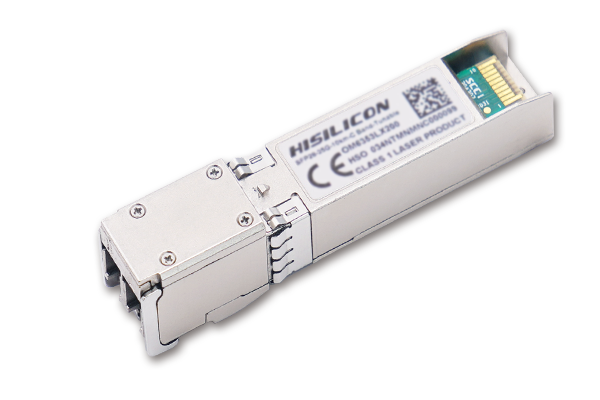

Product Specification
|
P/N
|
|
OM6353LX200
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP28
|
25G Tunable DWDM
|
LC
|
SMF
|
10 km
|
2.5
|
–20 to +85
|
0 to 4
|
–16
|
|
P/N
|
OM6353LX200
|
|
Form Factor
|
SFP28
|
|
Transceiver
|
25G Tunable DWDM
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach
|
10 km
|
|
Power Consumption/W
|
2.5
|
|
Temperture/℃
|
–20 to +85
|
|
Tx Output/dBm
|
0 to 4
|
|
Rx Input/dBm
|
–16
|
