Features
Compliant to SFP56 MSA, IEEE 802.3cn 50G BASE-LR, IPEC MFH 50
Hot pluggable 20 pin electrical interface
Maximum power consumption: 2 W
Up to 10 km transmission on single mode fiber
Single 3.3 V power supply
Refer toSFF-8419-MSA Rev 1.3, SFF-8431-MSA Rev.4.1A, SFF-8472 Rev 12.4
56G electrical interface (OIF CEI-56G-VSR)
Up to 53.125 Gbps data links
Operating case temperature: –40°C to +85°C
RoHS 2 compliant
Applications
CPRI/eCPRI
50G/25G Ethernet switches and routers
CPRI/eCPRI
50G/25G Ethernet switches and routers

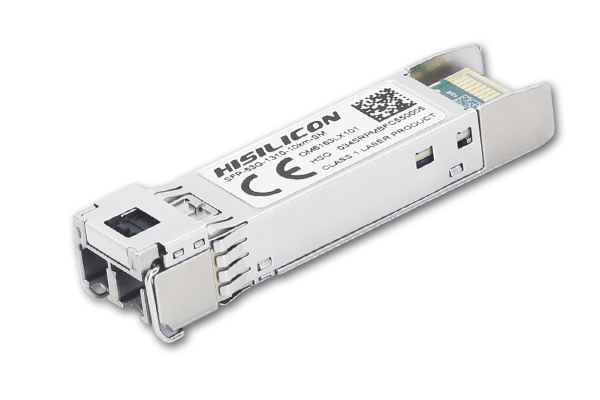

Product Specification
|
P/N
|
|
OM6163LX101
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperature/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP56
|
50G duplex
|
LC
|
SMF
|
10
|
2
|
–40 to +85
|
–2.3 to +4.5
|
–8.9 to +4.5
|
|
P/N
|
OM6163LX101
|
|
Form Factor
|
SFP56
|
|
Transceiver
|
50G duplex
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
10
|
|
Power Consumption/W
|
2
|
|
Temperature/℃
|
–40 to +85
|
|
Tx Output/dBm
|
–2.3 to +4.5
|
|
Rx Input/dBm
|
–8.9 to +4.5
|
