Features

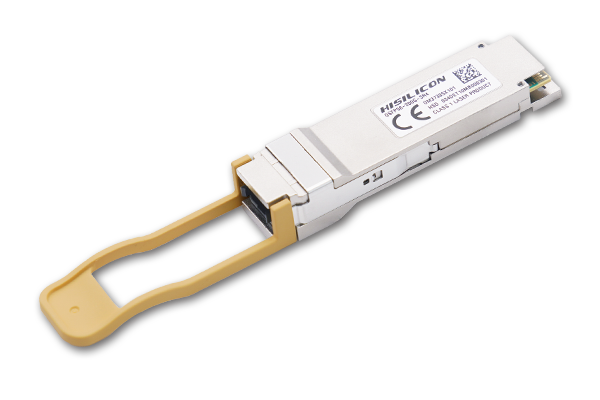

Hot-pluggable QSFP56
IEEE 802.3bs 200GAUI-4 standard compliant
Digital diagnostic functions
212.5 Gbps aggregate bit rate
Single MPO-12 APC/UPC receptacle
Operating case temperature range 0°C to 70°C
RoHS 2 compliant
IEEE 802.3cd 200GBASE-SR4 standard compliant
CMIS4.0 Management interface compliant
4-channel full-duplex transceiver module
Maximum link length of 70 m OM3, 100 m OM4 with FEC
Maximum power dissipation < 5 W
Single 3.3 V power supply
Applications
200G Ethernet
Data Center Network
200G Ethernet
Data Center Network
Product Specification
|
P/N
|
|
OM3738SX101
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperature/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP56
|
SR4
|
MPO
|
MMF
|
0.1
|
5
|
0 to 70
|
–4.5 to +3
|
–6.5 to +3
|
|
P/N
|
OM3738SX101
|
|
Form Factor
|
QSFP56
|
|
Transceiver
|
SR4
|
|
Interface
|
MPO
|
|
Media
|
MMF
|
|
Reach/km
|
0.1
|
|
Power Consumption/W
|
5
|
|
Temperature/℃
|
0 to 70
|
|
Tx Output/dBm
|
–4.5 to +3
|
|
Rx Input/dBm
|
–6.5 to +3
|
