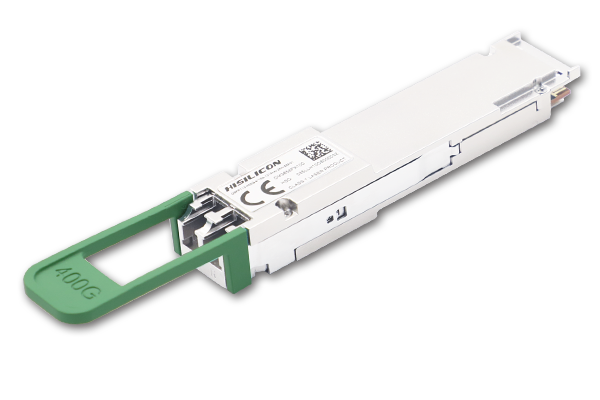

QSFP112 400G FR4

Order Download Databrief

Features

QSFP112 MSA compliant

4 CWDM lanes MUX/DEMUX design

Maximum power consumption 9.5 W

Supports 425 Gbps aggregate bit rate

Operating case temperature 0°C to 70°C

Compliant to OIF-CEI-112G-VSR-PAM4

Compliant to CMIS Rev 5.2/Rev 4.0

RoHS 2 compliant

Non-hermetic package design

Up to 106.25 Gbps data rate per channel by PAM4 modulation

Duplex LC connector

Up to 2 km transmission on single mode fiber with KP4 FEC

Single 3.3 V power supply

Optical Interface: IEEE 802.3cu compliant

100G Lambda MSA

Applications

400G Ethernet

Data Center Network

400G Ethernet

Data Center Network

Product Specification

P/N
OM3658FX100

Form Factor	Transceiver	Interface	Media	Reach/km	Power Consumption/W	Temperature/℃	Tx Output/dBm	Rx Input/dBm
QSFP112	FR4	LC	SMF	2	9.5	0 to 70	–0.2 to +3.7	–4.6 to +3.7

P/N	OM3658FX100
Form Factor	QSFP112
Transceiver	FR4
Interface	LC
Media	SMF
Reach/km	2
Power Consumption/W	9.5
Temperature/℃	0 to 70
Tx Output/dBm	–0.2 to +3.7
Rx Input/dBm	–4.6 to +3.7
