Features

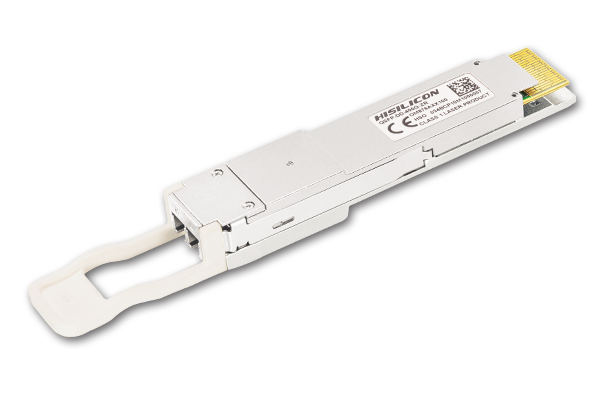

QSFP-DD MSA compliant
Digital diagnostic monitoring support
Maximum power consumption 16.5 W
Compact size (18.4 mm x 93.4 mm x 8.5 mm)
400GBASE-R, 425 Gbps bit rate
Operating case temperature: 0°C to 75°C
RoHS 2 compliant
Compliant with OIF 400ZR, version 01.0, March 10, 2020
Hot-pluggable by 76-pin electrical interface
400G 16QAM modulation
LC duplex connector
400G-AUI-8 C2M; 8 x CEI-56G-VSR PAM-4 electrical interface
Single 3.3 V power supply
Applications
400G Ethernet
400G DCI
400G Ethernet
400G DCI
Product Specification
|
P/N
|
|
OM876AXX100
|
|
Data Rate/Gbps
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
400
|
QSFP-DD
|
ZR
|
LC
|
SMF
|
80–120
|
16.5
|
0 to 75
|
–10 to –6
|
–12 to 0
|
|
P/N
|
OM876AXX100
|
|
Data Rate/Gbps
|
400
|
|
Form Factor
|
QSFP-DD
|
|
Transceiver
|
ZR
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
80–120
|
|
Power Consumption/W
|
16.5
|
|
Temperture/℃
|
0 to 75
|
|
Tx Output/dBm
|
–10 to –6
|
|
Rx Input/dBm
|
–12 to 0
|
