Features
SFP28 MSA compliant
25G electrical interface (OIF CEI-28G-VSR)
Up to 25.78 Gbps data links
Operating case temperature: –40°C to +85°C
RoHS 2 compliant
Hot pluggable 20-pin electrical interface
Maximum power consumption 1.2 W
Up to 20 km transmission on single mode fiber
Single 3.3 V power supply
Applications
CPRI/eCPRI
10G/25G Ethernet Switches and Routers
CPRI/eCPRI
10G/25G Ethernet Switches and Routers

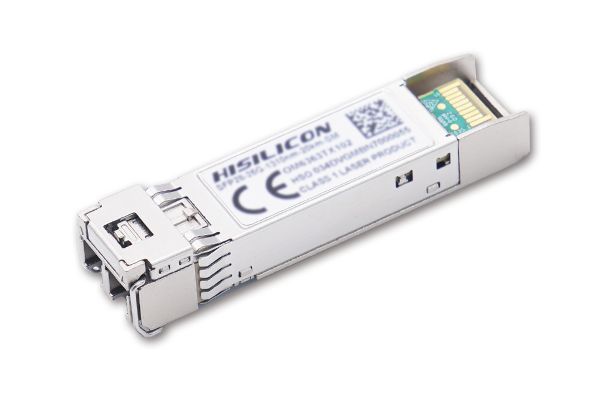

Product Specification
|
P/N
|
|
OM6363TX102
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP28
|
25G duplex
|
LC
|
SMF
|
20 km
|
1.2
|
–40 to +85
|
0 to 6
|
–13
|
|
P/N
|
OM6363TX102
|
|
Form Factor
|
SFP28
|
|
Transceiver
|
25G duplex
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach
|
20 km
|
|
Power Consumption/W
|
1.2
|
|
Temperture/℃
|
–40 to +85
|
|
Tx Output/dBm
|
0 to 6
|
|
Rx Input/dBm
|
–13
|
