Features
SFP28 MSA compliant
Hot pluggable 20-pin electrical interface
25G electrical interface (OIF CEI-28G-VSR)
Up to 25.78 Gbps data links
Operating case temperature: –40°C to +85°C
RoHS 2 compliant
Compliant to IEEE 802.3cc 25GBASE-LR
1270 nm/1330 nm DFB transmitter
Maximum power consumption 1.2 W
Up to 10 km transmission on single mode fiber
Single 3.3 V power supply
Applications
CPRI/eCPRI
10G/25G Ethernet Switches and Routers
CPRI/eCPRI
10G/25G Ethernet Switches and Routers

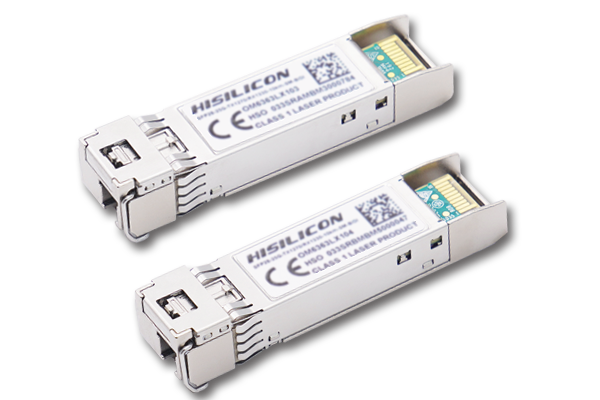

Product Specification
|
P/N
|
|
OM6363LX103
OM6363LX104 |
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
SFP28
|
25G BiDi
|
LC
|
SMF
|
10 km
|
1.2
|
–40 to +85
|
–7 to +2
|
–12
|
|
P/N
|
OM6363LX103
OM6363LX104 |
|
Form Factor
|
SFP28
|
|
Transceiver
|
25G BiDi
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach
|
10 km
|
|
Power Consumption/W
|
1.2
|
|
Temperture/℃
|
–40 to +85
|
|
Tx Output/dBm
|
–7 to +2
|
|
Rx Input/dBm
|
–12
|
