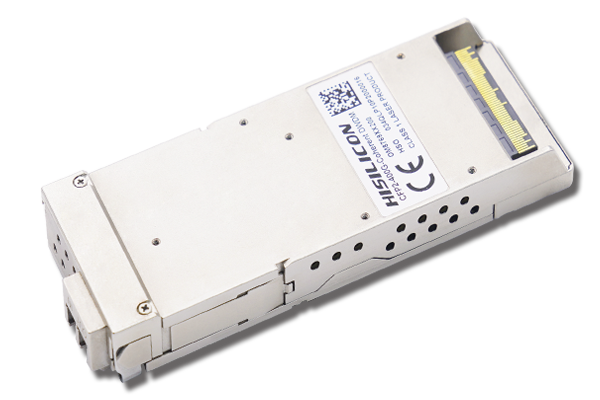

400G/200G CFP2

Order Download Databrief

Features

Transmission reach beyond 640 km@400G and 2000 km@200G over SMF

Supports 75 GHz/100 GHz channel spacing

Supports PM-16QAM(400G)/PM-QPSK(200G) modulation

Compliant with CFP MSA Management Interface Specification Version 2.6 (R06a)

Single 3.3 V power supply

Operating case temperature: 0°C to 75°C

Hot-pluggable 104-pin electrical interface

Supports OTN Framer

Compliant with CFP2 MSA Hardware Specification Rev. 1.0

LC duplex connector

Typical power consumption: 32 W

Applications

400G Ethernet

400G OTN

400G DCI

400G Ethernet

400G OTN

400G DCI

Product Specification

P/N
OM8769XX200

Data Rate/Gbps	Form Factor	Transceiver	Interface	Media	Reach/km	Power Consumption/W	Temperature/℃	Tx Output/dBm	Rx Input/dBm
400 200	CFP2	DWDM	LC	SMF	640 2000	36	0 to 75	–10 to +1	–19 to +1

P/N	OM8769XX200
Data Rate/Gbps	400 200
Form Factor	CFP2
Transceiver	DWDM
Interface	LC
Media	SMF
Reach/km	640 2000
Power Consumption/W	36
Temperature/℃	0 to 75
Tx Output/dBm	–10 to +1
Rx Input/dBm	–19 to +1
