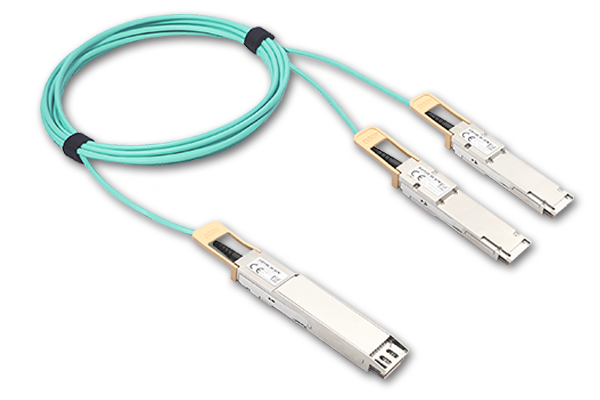

OSFP 800G to QSFP112 2 x 400G AOC

Order Download Databrief

Features

OSFP MSA rev5.1 compliant

OIF CMIS 5.2 Management interface compliant

IEEE 802.3ck 400GAUI-4 standard compliant

Digital diagnostic functions

Hot Pluggable QSFP112 form factor

850 Gbps aggregate bit rate

Maximum power dissipation 15.5 W @800G OSFP END

Operating case temperature range 0°C to 70°C

RoHS 2 compliant

QSFP112 MSA rev2.11 compliant

IEEE 802.3ck 800GAUI-8 standard compliant

OIF-CEI-112G-VSR-PAM4 standard compliant

Hot Pluggable OSFP (flat-top) form factor

8 channels full-duplex transceiver module

Maximum link length of 40 m MMF with FEC

Maximum power dissipation 8 W @400G QSFP112 END

Single 3.3 V power supply

Applications

Ethernet

Data Center Network

Ethernet

Data Center Network

Product Specification

P/N
OM3881SX10x

Form Factor	Transceiver	Interface	Media	Reach/km	Power Consumption/W	Temperature/℃	Tx Output/dBm	Rx Input/dBm
OSFP/QSFP112	Ycable	MPO	MMF	0.005~0.04	15.5W@800G 8W@400G	0 to 70	/	/

P/N	OM3881SX10x
Form Factor	OSFP/QSFP112
Transceiver	Ycable
Interface	MPO
Media	MMF
Reach/km	0.005~0.04
Power Consumption/W	15.5W@800G 8W@400G
Temperature/℃	0 to 70
Tx Output/dBm	/
Rx Input/dBm	/
