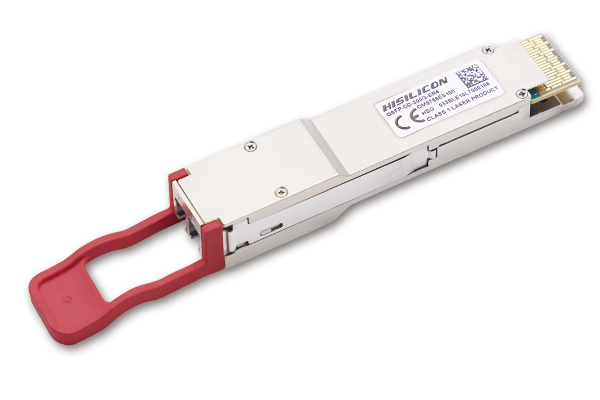

Features
QSFP-DD MSA compliant
Digital diagnostic monitoring support
4 LAN-WDM lanes MUX/DEMUX design
53.125 Gbps PAM4 channel electrical serial interface (200GAUI-4)
Maximum power consumption 10.8 W
Supports 212.5 Gbps bit rate
Single 3.3 V power supply
Compliant to IEEE 802.3cn 200GBASE-ER4
Hot pluggable 76 pin electrical interface
4 x 25G electrical interface
26.5625 Gbps NRZ channel electrical serial interface (200GAUI-8)
LC duplex connector
Up to 40 km transmission on single mode fiber
RoHS 2 compliant
Applications
200GBASE-ER4 Ethernet
Telecom Networking
Data Center Interconnect
200GBASE-ER4 Ethernet
Telecom Networking
Data Center Interconnect
Product Specification
|
P/N
|
|
OM9758ES100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP-DD
|
ER4
|
LC
|
SMF
|
10
|
10.8
|
0 to 70
|
3.4 to 7.4
|
Max (–15.1, SECQ – 16.5)
|
Y
|
|
P/N
|
OM9758ES100
|
|
Form Factor
|
QSFP-DD
|
|
Transceiver
|
ER4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
10
|
|
Power Consumption/W
|
10.8
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
3.4 to 7.4
|
|
Rx Input/dBm
|
Max (–15.1, SECQ – 16.5)
|
|
FEC
|
Y
|
