Features

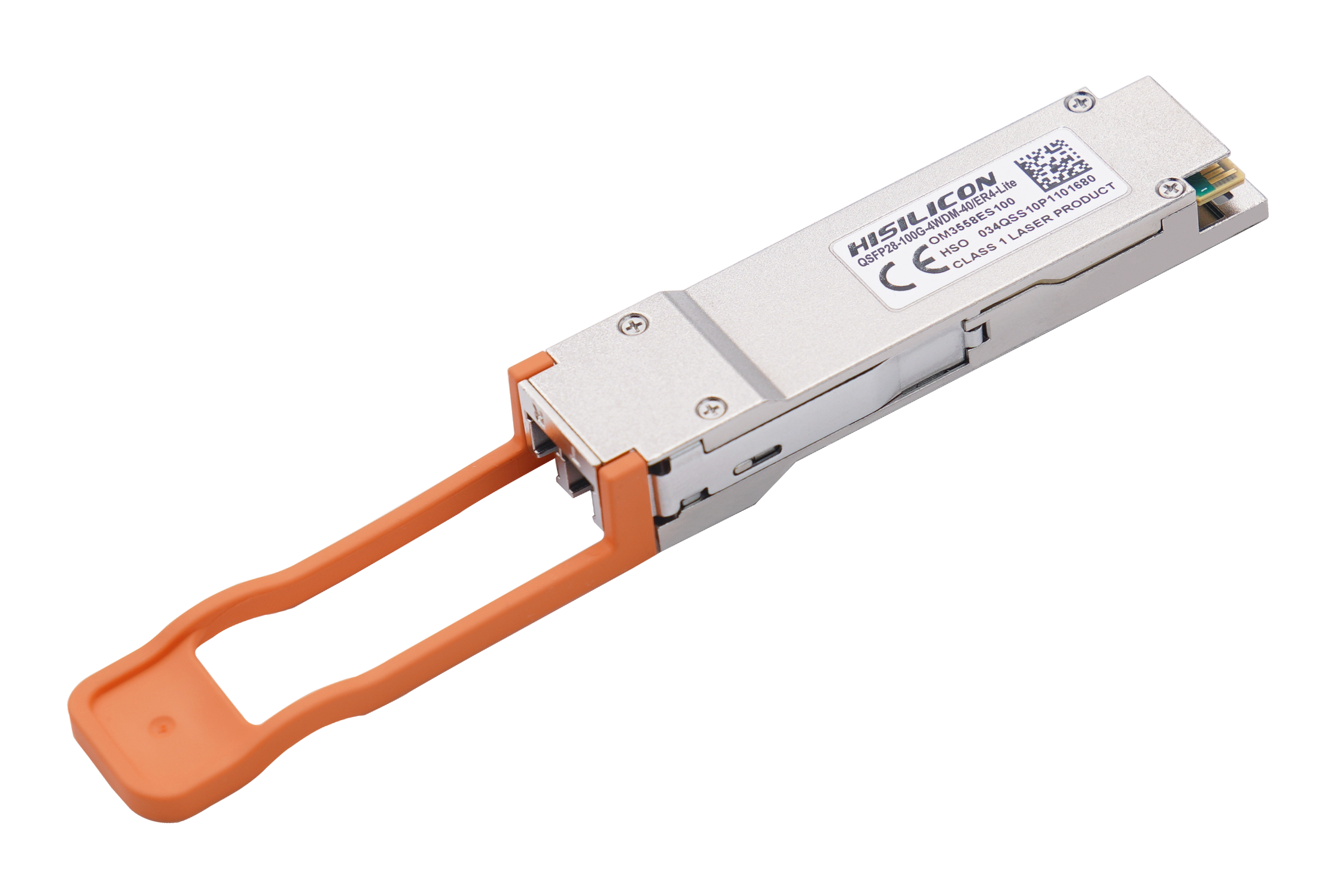

QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 x 25G electrical interface
LC duplex connector
Up to 40 km with FEC/30 km without FEC
Single 3.3 V power supply
Compliant to 4-Wavelength WDM MSA
4 LAN-WDM lanes MUX/DEMUX design
Maximum power consumption 4.5 W
Supports 103.125 Gbps aggregate bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Applications
100G 4WDM-40 Ethernet and ER4-Lite Ethernet
Telecom Networking
Data Center Interconnect
100G 4WDM-40 Ethernet and ER4-Lite Ethernet
Telecom Networking
Data Center Interconnect
Product Specification
|
P/N
|
|
OM3558ES100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
4WDM-40/ER4-Lite
|
LC
|
SMF
|
30
40 |
4.5
|
0 to 70
|
0.5 to 6.5
|
–14.6
–18.5 |
N
Y |
|
P/N
|
OM3558ES100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
4WDM-40/ER4-Lite
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
30
40 |
|
Power Consumption/W
|
4.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
0.5 to 6.5
|
|
Rx Input/dBm
|
–14.6
–18.5 |
|
FEC
|
N
Y |
