Features
QSFP28 MSA compliant
4 LAN-WDM lanes MUX/DEMUX design
Transmitter: cooled LAN-WDM EML TOSA
Maximum power consumption 5 W
Supports 103.125 Gbps aggregate bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Hot pluggable 38 pin electrical interface
4 x 25G electrical interface
Receiver: SOA + PD ROSA
LC duplex connector
Up to 40 km transmission on single mode fiber without FEC
Single 3.3 V power supply
Applications
100GE Ethernet
Telecom networking
Data Center Interconnect
100GE Ethernet
Telecom networking
Data Center Interconnect

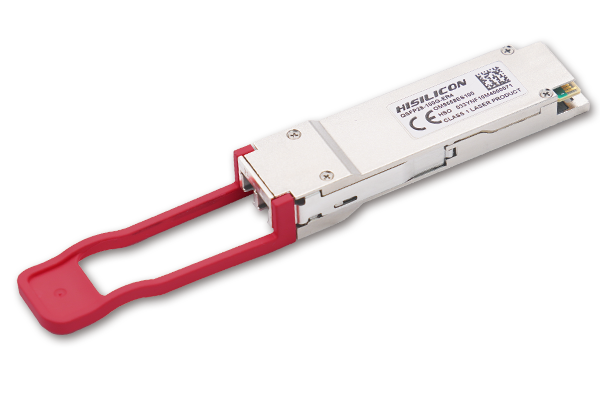

Product Specification
|
P/N
|
|
OM9558ES100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
ER4
|
LC
|
SMF
|
40
|
5
|
0 to 70
|
–2.9 to +2.9
|
–20.9
|
N
|
|
P/N
|
OM9558ES100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
ER4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
40
|
|
Power Consumption/W
|
5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–2.9 to +2.9
|
|
Rx Input/dBm
|
–20.9
|
|
FEC
|
N
|
