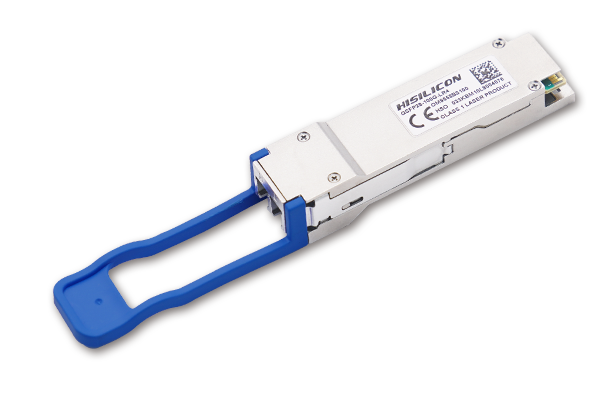

Features
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 x 25G electrical interface
LC duplex connector
Up to 20 km transmission on single mode fiber
Single 3.3 V power supply
Digital diagnostic monitoring support
4 LAN-WDM lanes MUX/DEMUX design
Maximum power consumption 4 W
Supports 103.125 Gbps bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Applications
Telecom Networking
Data Center Interconnect
Enterprise Networking
Telecom Networking
Data Center Interconnect
Enterprise Networking
Product Specification
|
P/N
|
|
OM9558BS100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
eLR4
|
LC
|
SMF
|
20
|
4
|
0 to 70
|
1.0 to 4.5
|
–10.6
|
N
|
|
P/N
|
OM9558BS100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
eLR4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
20
|
|
Power Consumption/W
|
4
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
1.0 to 4.5
|
|
Rx Input/dBm
|
–10.6
|
|
FEC
|
N
|
