Features
QSFP28 MSA compliant
2 BiDi lanes MUX/DEMUX design
Maximum power consumption 4 W
103.125 Gbps aggregate bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
IEEE 802.3 bm-2015 compliant
4 x 25.78125G electrical interface (CAUI-4)
LC duplex connector
Up to 70 m/100 m transmission on OM3/OM4 fiber with FEC
Single 3.3 V power supply
Applications
100GE Ethernet
Data Center Interconnect
Enterprise Networking
100GE Ethernet
Data Center Interconnect
Enterprise Networking

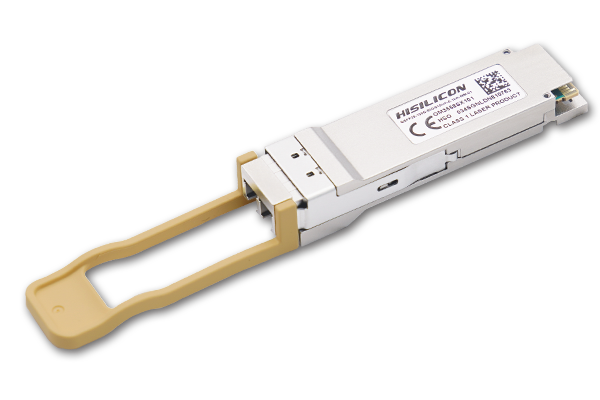

Product Specification
|
P/N
|
|
OM3558SX101
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP28
|
BiDi
|
LC
|
MMF
|
0.1 |
4
|
0 to 70
|
–3.2 to +3
|
Max (–6.6, SECQ – 8)
|
|
P/N
|
OM3558SX101
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
BiDi
|
|
Interface
|
LC
|
|
Media
|
MMF
|
|
Reach/km
|
0.1 |
|
Power Consumption/W
|
4
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–3.2 to +3
|
|
Rx Input/dBm
|
Max (–6.6, SECQ – 8)
|
