Features
QSFP+ MSA compliant
4 CWDM lanes MUX/DEMUX design
Maximum power consumption 3.5 W
41.25 Gbps aggregate bit rate
Operating case temperature: 0 to 70°C
I2C digital management interface
IEEE 802.3-2018 compliant
4 x 10G electrical interface (XLPPI)
LC duplex connector
Up to 10 km transmission on single mode fiber without FEC
Single 3.3 V power supply
RoHS 2 compliant
Applications
40GE Ethernet
Data Center Interconnect
Enterprise Networking
40GE Ethernet
Data Center Interconnect
Enterprise Networking
Product Specification
|

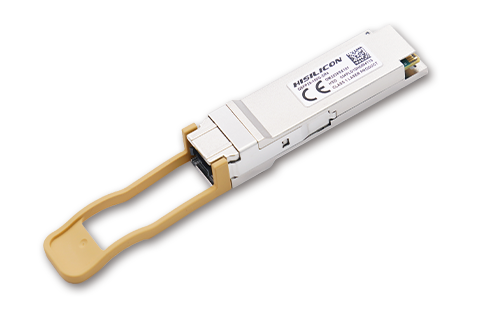

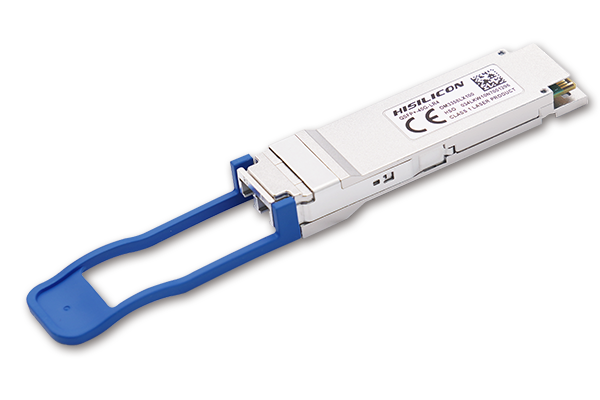

P/N
|
|
OM3358LX100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP+
|
LR4
|
LC
|
SMF
|
10
|
3.5
|
0 to 70
|
–4 to +3.5
|
–11.5
|
|
P/N
|
OM3358LX100
|
|
Form Factor
|
QSFP+
|
|
Transceiver
|
LR4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
10
|
|
Power Consumption/W
|
3.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–4 to +3.5
|
|
Rx Input/dBm
|
–11.5
|
