Features

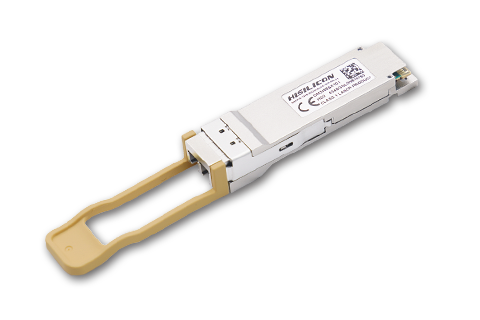

QSFP28 MSA compliant
4 x 25.78125 Gbps electrical interface (CAUI-4)
Four independent full-duplex channels
103.125 Gbps aggregate bit rate
Operating case temperature ranges from 0 to 70°C
RoHS 2 compliant
IEEE 802.3bm 100GBASE-SR4 compliant
Digital diagnostic monitoring support
MPO-12 optical connector
Link distances up to 100 m OM4, 70 m OM3
Single 3.3 V power supply
Applications
100GE Ethernet
Data Center Interconnect
Enterprise Networking
100GE Ethernet
Data Center Interconnect
Enterprise Networking
Product Specification
|
P/N
|
|
OM3538SX101
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP28
|
SR4
|
MPO
|
MMF
|
0.1 |
3.5
|
0 to 70
|
–6.4 to +3
|
–5.2
|
|
P/N
|
OM3538SX101
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
SR4
|
|
Interface
|
MPO
|
|
Media
|
MMF
|
|
Reach/km
|
0.1 |
|
Power Consumption/W
|
3.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–6.4 to +3
|
|
Rx Input/dBm
|
–5.2
|
