Features

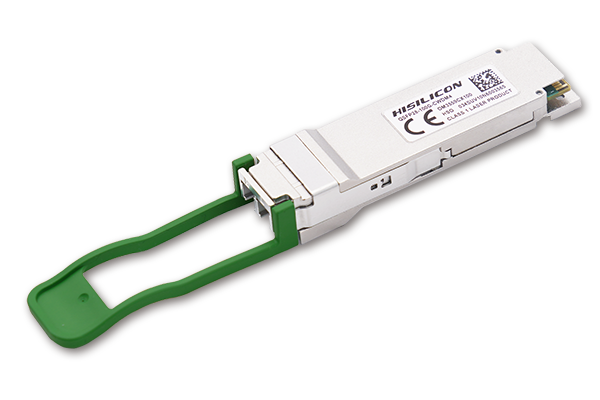

QSFP28 MSA compliant
4 CWDM lanes MUX/DEMUX design
Maximum power consumption 3.5 W
103.1 Gbps aggregate bit rate
Operating case temperature: 0 to 70°C
I2C digital management interface
100GE CWDM4 MSA compliant
4 x 25G electrical interface (OIF CEI-28G-VSR)
LC duplex connector
Up to 2 km transmission on single mode fiber with FEC
Single 3.3 V power supply
RoHS 2 compliant
Applications
100GE Ethernet
Data Center Interconnect
Enterprise Networking
100GE Ethernet
Data Center Interconnect
Enterprise Networking
Product Specification
|
P/N
|
|
OM3559CX100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
|
QSFP28
|
CWDM4
|
LC
|
SMF
|
2
|
3.5
|
0 to 70
|
–4 to +2.5
|
–10
|
|
P/N
|
OM3559CX100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
CWDM4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
2
|
|
Power Consumption/W
|
3.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–4 to +2.5
|
|
Rx Input/dBm
|
–10
|
