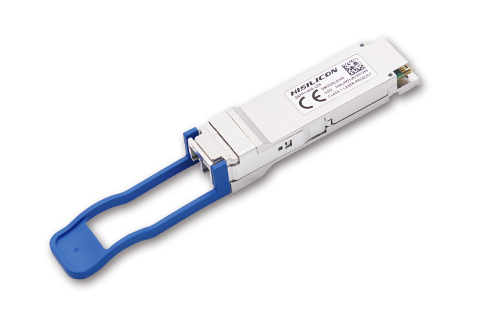

400GE FR4
400GE FR4

OM3660FX102 is a transceiver module designed for 2 km optical communication applications, and it is compliant with 100G Lambda MSA standard. This module can convert 8-channel 53.125 Gbps electrical data to 4-channel 106.25 Gbps optical signals, and multiplex them into a single channel for 425 Gbps optical transmission. Similarly, it optically de-multiplexes a 425 Gbps input into 4-channel signals, and converts them to 8-channel output electrical data on the receiver side. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via the I2C interface.

Order Download Databrief
Features
QSFP-DD MSA rev5.0 compliant
802.3cu compliant
QSFP-DD CMIS4.0 management interface compliant
4 CWDM lanes MUX/DEMUX design
Maximum power consumption 12 W
425 Gbps aggregate bit rate
Single 3.3 V power supply
100G Lambda MSA compliant
400GE FR4 specification compliant
Non-hermetic package design
8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
LC duplex connector
Up to 2 km transmission on single mode fiber with FEC
RoHS 2 compliant
Applications
400GE Ethernet
Data Center Network
400GE Ethernet
Data Center Network
Product Specification
P/N
OM3660FX102
Form Factor
Transceiver
Interface
Media
Reach/km
Power Consumption/W
Temperture/℃
Tx Output/dBm
Rx Input/dBm
QSFP–DD
FR4
LC
SMF
2
12
0 to 70
–0.2 to +3.7
–4.6
P/N
OM3660FX102
Form Factor
QSFP–DD
Transceiver
FR4
Interface
LC
Media
SMF
Reach/km
2
Power Consumption/W
12
Temperture/℃
0 to 70
Tx Output/dBm
–0.2 to +3.7
Rx Input/dBm
–4.6
Download Databrief
