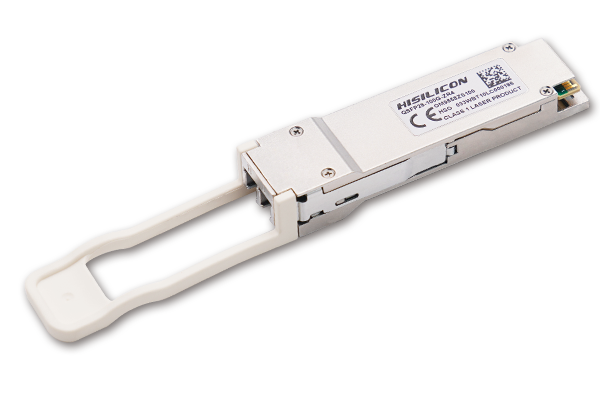

Features
QSFP28 MSA compliant
4 LAN-WDM lanes MUX/DEMUX design
LC duplex connector
Up to 80 km transmission on single mode fiber
RoHS 2 compliant
Hot pluggable 38 pin electrical interface
4 x 25G electrical interface
Supports 103.125 Gbps aggregate bit rate
Single 3.3 V power supply
Applications
100GBASE-ZR4 100G Ethernet
Telecom Networking
100GBASE-ZR4 100G Ethernet
Telecom Networking
Product Specification
|
P/N
|
|
OM9558ZS105
OM9558ZS106 OM9558ZS107 |
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
ZR4
|
LC
|
SMF
|
80
|
5.5
6 4.5 |
0 to 70
-20 to +75 0 to 70 |
2.0 to 6.5
|
–28
|
Y
|
|
P/N
|
OM9558ZS105
OM9558ZS106 OM9558ZS107 |
|
Form Factor
|
QSFP28
|
|
Transceiver
|
ZR4
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
80
|
|
Power Consumption/W
|
5.5
6 4.5 |
|
Temperture/℃
|
0 to 70
-20 to +75 0 to 70 |
|
Tx Output/dBm
|
2.0 to 6.5
|
|
Rx Input/dBm
|
–28
|
|
FEC
|
Y
|
