Features
QSFP-DD MSA compliant
Digital diagnostic monitoring support
8 LAN-WDM lanes MUX/DEMUX design
Maximum power consumption 15.4 W
Supports 425 Gbps bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Compliant to IEEE 802.3bs 400GBASE-ER8
Hot pluggable 76 pin electrical interface
53.125 Gbps PAM4 channel electrical serial interface (400GAUI-8)
LC duplex connector
Up to 40 km transmission on single mode fiber
Single 3.3 V power supply
Applications
400GBASE-ER8 Ethernet
Telecom Networking
Data Center Interconnect
400GBASE-ER8 Ethernet
Telecom Networking
Data Center Interconnect

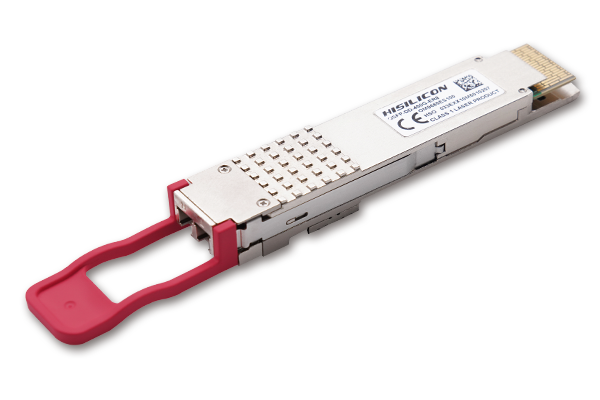

Product Specification
|
P/N
|
|
OM9660ES100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP-DD
|
ER8
|
LC
|
SMF
|
40
|
15.4
|
0 to 70
|
2.4 to 6.4
|
Max (–16.1, SECQ – 17.5)
|
Y
|
|
P/N
|
OM9660ES100
|
|
Form Factor
|
QSFP-DD
|
|
Transceiver
|
ER8
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
40
|
|
Power Consumption/W
|
15.4
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
2.4 to 6.4
|
|
Rx Input/dBm
|
Max (–16.1, SECQ – 17.5)
|
|
FEC
|
Y
|
