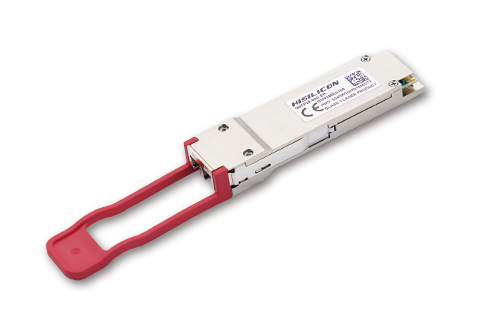

Features
QSFP28 MSA compliant
1 x 50G PAM4 transmitter
Maximum power consumption 3.5 W
Supports 53.125 Gbps aggregate bit rate
Operating case temperature: 0°C to 70°C
RoHS 2 compliant
Hot pluggable 38 pin electrical interface
26.5625 Gbps channel electrical serial interface (50GAUI-2)
LC duplex connector
Up to 10 km transmission on single mode fiber
Single 3.3 V power supply
Applications
50GBASE-LR Ethernet
Telecom Networking
50GBASE-LR Ethernet
Telecom Networking
Product Specification
|
P/N
|
|
OM9380LS100
|
|
Form Factor
|
Transceiver
|
Interface
|
Media
|
Reach/km
|
Power Consumption/W
|
Temperture/℃
|
Tx Output/dBm
|
Rx Input/dBm
|
FEC
|
|
QSFP28
|
LR
|
LC
|
SMF
|
10
|
3.5
|
0 to 70
|
–1.5 to +4
|
Max (–8.4, SECQ – 9.8)
|
Y
|
|
P/N
|
OM9380LS100
|
|
Form Factor
|
QSFP28
|
|
Transceiver
|
LR
|
|
Interface
|
LC
|
|
Media
|
SMF
|
|
Reach/km
|
10
|
|
Power Consumption/W
|
3.5
|
|
Temperture/℃
|
0 to 70
|
|
Tx Output/dBm
|
–1.5 to +4
|
|
Rx Input/dBm
|
Max (–8.4, SECQ – 9.8)
|
|
FEC
|
Y
|
